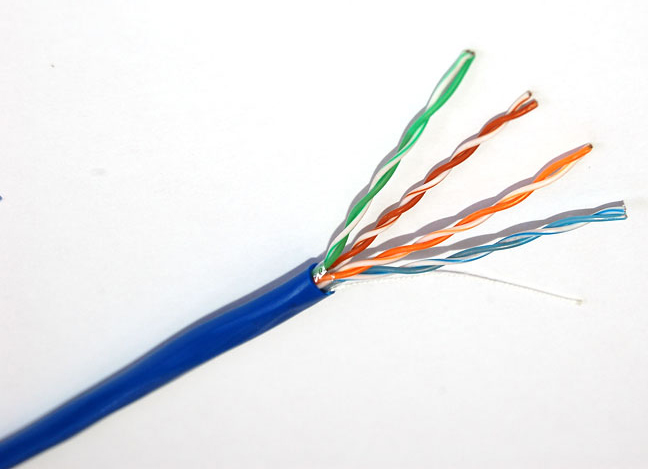

CAT 5E UTP LAN CABLE
Release time：2016-04-07 11:31:00 viewed：1003
Applications
■ 10Base-T
■ 100Base-T4
■ 100Base-TX
■ 100Base-VG-ANYLAN
■ 155Mbps ATM
■ 622 Mbps ATM
■ 1000Base-T
Standards
■ ISO/IEC11801
■ ANSI/TIA/EIA-568-B.2
■ YD/T1019
■ UL
■ CE
Features of produc
■ More bandwidth secess than 100MHz standard required;
■ Comply with ROHS standard;
■ The products of special outer sheath or purpose can be designed according to customer’s demands.
Physical Electrical Characteristics
■ DC resistance (max): 9.5Ω/100m at 20℃;
■ Mutual capactitance (max): 5.6nF/100m;
■ Unbalanced capacitance (max): 330pF/100m;
■ Dielectric strength between conductors (min): 2.5kV/2s;
■ Impedance: 1-100MHz 100±15Ω;
■ Differential phase delay (max): 30ns/100m;
■ Operating temperature: -20～+60℃；
■ Permitted bend radius: 10 times diameter of the cable.

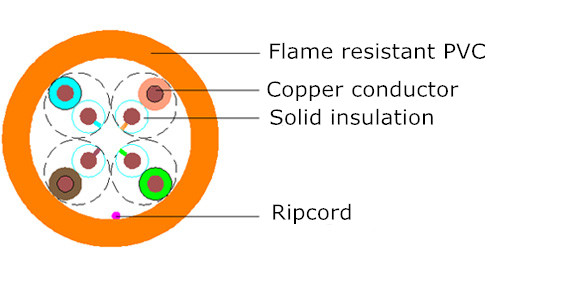

Material instruction
■ Conductor: 24AWG Copper;
■ Insulation: Solid HDPE or Skin-Foam-Skin PE;
■ Sheath: Environment Friendly PVC or Flame resistance PE or low smoke zero halogen polyolefin (LSZHP);
Transmission Performance
■ 10Base-T
■ 100Base-T4
■ 100Base-TX
■ 100Base-VG-ANYLAN
■ 155Mbps ATM
■ 622 Mbps ATM
■ 1000Base-T
Standards
■ ISO/IEC11801
■ ANSI/TIA/EIA-568-B.2
■ YD/T1019
■ UL
■ CE
Features of produc
■ More bandwidth secess than 100MHz standard required;
■ Comply with ROHS standard;
■ The products of special outer sheath or purpose can be designed according to customer’s demands.
Physical Electrical Characteristics
■ DC resistance (max): 9.5Ω/100m at 20℃;
■ Mutual capactitance (max): 5.6nF/100m;
■ Unbalanced capacitance (max): 330pF/100m;
■ Dielectric strength between conductors (min): 2.5kV/2s;
■ Impedance: 1-100MHz 100±15Ω;
■ Differential phase delay (max): 30ns/100m;
■ Operating temperature: -20～+60℃；
■ Permitted bend radius: 10 times diameter of the cable.
Material instruction
■ Conductor: 24AWG Copper;
■ Insulation: Solid HDPE or Skin-Foam-Skin PE;
■ Sheath: Environment Friendly PVC or Flame resistance PE or low smoke zero halogen polyolefin (LSZHP);
Transmission Performance
|
Frequency (MHz) |
Attenuation (Max) (dB/100m) |
NEXT (Min) (dB/100m) |
PSNEXT (Min) (dB/100m) |
ELFEXT (Min) (dB/100m) |
RL(Min) (dB) |
Phase velocity (Min)(m/s) |
Phase delay (Max) (ns/100m) |
| 1 | 2.0 | 65 | 62 | 64 | 20 | 0.585c | 570 |
| 4 | 4.1 | 56 | 53 | 52 | 23 | --- | 552 |
| 10 | 6.5 | 50 | 47 | 44 | 25 | 0.611c | 545 |
| 16 | 8.2 | 47 | 44 | 40 | 25 | --- | 543 |
| 20 | 9.3 | 46 | 43 | 38 | 25 | --- | 542 |
| 31.25 | 11.7 | 43 | 40 | 34 | 24 | --- | 540 |
| 62.5 | 17.0 | 38 | 35 | 28 | 22 | --- | 539 |
| 100 | 22.0 | 35 | 32 | 24 | 20 | 0.620c | 538 |
