CAT 5E SFTP LAN CABLE

Applications
■  10Base-T
■  100Base-T4
■  100Base-TX
■  100Base-VG-ANYLAN
■  155Mbps ATM
■  622 Mbps ATM
■  1000Base-T

Standards
■  ISO/IEC11801
■  ANSI/TIA/EIA-568-B.2
■  YD/T1019
■  UL
■  CE

Features of product
■  More bandwidth secess than 100MHz standard required;
■  Comply with ROHS standard;
■  The products of special outer sheath or purpose can be designed according to customer’s demands.

Physical Electrical Characteristics
■  DC resistance (max): 9.5Ω/100m at 20℃;
■  Mutual capactitance (max): 5.6nF/100m;
■  Unbalanced capacitance (max): 330pF/100m;
■  Dielectric strength between conductors (min): 2.5kV/2s;
■  Impedance: 1-100MHz   100±15Ω;
■  Differential phase delay (max): 30ns/100m;
■  Operating temperature: -20～+60℃；
■  Permitted bend radius: 10 times diameter of the cable.

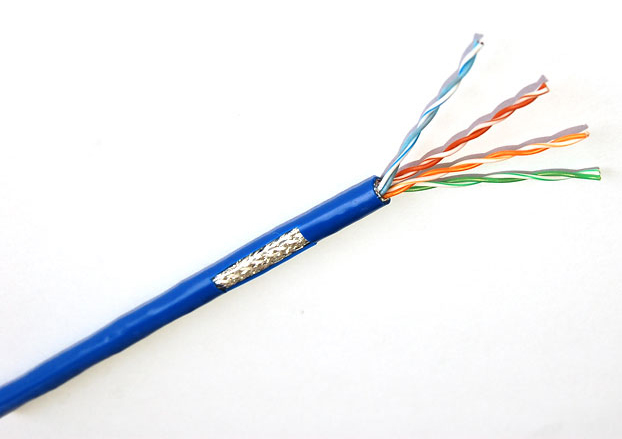

Material instruction
■  Conductor: 24AWG Copper;
■  Insulation: Solid HDPE or Skin-Foam-Skin PE;
■  Sheath: Environment Friendly PVC or Flame resistance PE or low smoke zero halogen polyolefin (LSZHP);

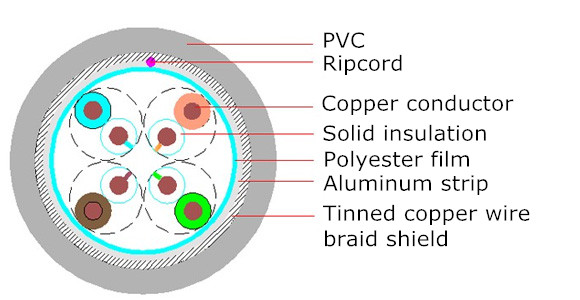

■  Shield 1: One side plastic coated aluminium strip；
■  Sield 2: Tinned copper wire braid

Transmission Performance

Frequency (MHz)	Attenuation (Max) (dB/100m)	NEXT (Min) (dB/100m)	PSNEXT (Min) (dB/100m)	ELFEXT (Min) (dB/100m)	RL(Min) (dB)	Phase velocity (Min)(m/s)	Phase delay (Max) (ns/100m)
1	2.0	65	62	64	20	0.585c	570
4	4.1	56	53	52	23	---	552
10	6.5	50	47	44	25	0.611c	545
16	8.2	47	44	40	25	---	543
20	9.3	46	43	38	25	---	542
31.25	11.7	43	40	34	24	---	540
62.5	17.0	38	35	28	22	---	539
100	22.0	35	32	24	20	0.620c	538
