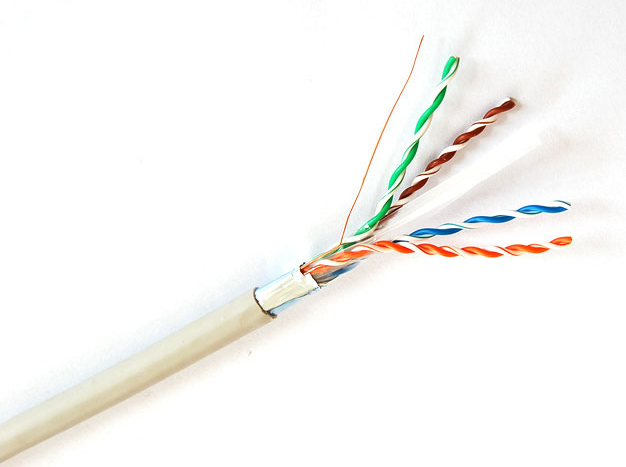

CAT 6 FTP LAN CABLE
Release time:2016-04-05 13:07:26 viewed:1015
Applications
■ 10Base-T4
■ 100Base-TX
■ 100Base-VG-ANYLAN
■ 155Mbps ATM
■ 622 Mbps ATM
■ 1000Base-T
■ 1000Base-TX
■ 10Gbase-T
Standards
■ ISO/IEC11801
■ ANSI/TIA/EIA-568-B.2
■ YD/T1019
■ UL
■ CE
Features of product
■ More bandwidth secess than 250MHz standard required;
■ Support 10-Gigabit Ethernet netword transmission requirements;
■ Comply with ROHS standard;
■ The products of special outer sheath or purpose can be designed according to customer’s demands.
Physical Electrical Characteristics
■ DC resistance (max): 7.5Ω/100m at 20℃;
■ Mutual capactitance (max): 5.6nF/100m;
■ Unbalanced capacitance (max): 330pF/100m;
■ Dielectric strength between conductors (min): 2.5kV/2s;
■ Impedance: 1-250MHz 100±15Ω;
■ Differential phase delay (max): 45ns/100m;
■ Operating temperature: -20~+60℃;
■ Permitted bend radius: 10 times diameter of the cable.

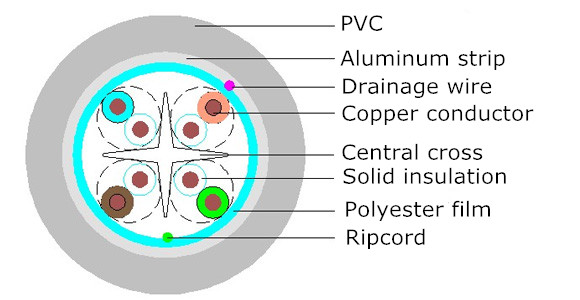

Material instruction
■ Conductor: 23AWG Copper;
■ Insulation: Solid HDPE or Skin-Foam-Skin PE;
■ Sheath: Environment Friendly PVC or Flame resistance PE or low smoke zero halogen polyolefin (LSZHP);
■ Shield : One side plastic coated aluminium strip.
Transmission Performance
Frequency (MHz) |
Attenuation (Max) (dB/100m) |
NEXT (Min) (dB/100m) |
PSNEXT (Min) (dB/100m) |
ELFEXT (Min) (dB/100m) |
RL(Min) (dB) |
Phase velocity (Min)(m/s) |
Phase delay (Max) (ns/100m) |
1 | 1.9 | 74 | 72 | 68 | 20 | 0.585c | 570 |
4 | 3.7 | 65 | 63 | 56 | 23 | --- | 552 |
10 | 5.9 | 59 | 57 | 48 | 25 | 0.611c | 545 |
16 | 7.5 | 56 | 54 | 44 | 25 | --- | 543 |
20 | 8.4 | 55 | 53 | 42 | 25 | --- | 542 |
31.25 | 10.6 | 52 | 50 | 38 | 23.6 | --- | 540 |
62.5 | 15.4 | 47 | 45 | 32 | 21.5 | --- | 539 |
100 | 19.8 | 44 | 42 | 28 | 20.1 | 0.620c | 538 |
200 | 29 | 40 | 38 | 22 | 18 | 537 | |
250 | 32.8 | 38 | 36 | 20 | 17.3 | 0.622c | 536 |
